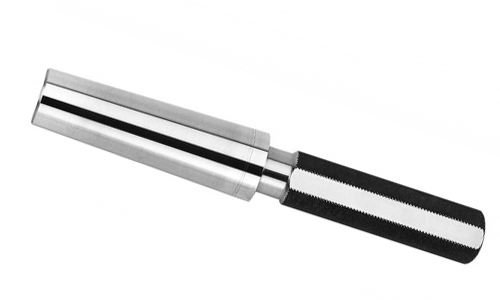

Plain Morse Taper Gauges

We are a Exporter and Supplier of Plain Morse Taper Gauges in India, made using superior quality high carbon chrome alloy steel. Morse Taper Gauges are available in both plug type and ring type. To provide a high degree of wear resistance, the tools are heat-treated. Fine surface finishing is provided for every tool.

The gauges are available in various specifications and can also be customized per our customer's specific requirements. We maintain the highest standards of quality, and we assure to deliver a new variety of thread ring gauges available in various diameters.

Technical Specification
Product Type	Plain Morse Taper Plug Gauge
Material	High Carbon High Chrome Steel / Alloy Tool Steel
Hardness	58–62 HRC (typical)
Standard	ISO / DIN / GB
Accuracy Class	Class 1 / Class 2 / Class 3
Taper Angle Tolerance	As per ISO / DIN
Dimensional Tolerance	As per Morse taper standard
Sizes	MT1, MT2, MT3, MT4, MT5, MT6, MT7 or Custom
Types	Plain Plug Gauges (Internal), Plain Ring Gauges (External)
Surface Finish	Hardened, ground, and lapped for maximum seating
Customization	Available

Precision Engineering for Accurate Taper Inspection

Plain Morse Taper Gauges are precisely manufactured to inspect internal and external Morse tapers with exceptional dimensional accuracy. They ensure proper seating, alignment, and concentricity of taper components, helping maintain strict tolerance control in tool holding systems and machine spindle assemblies.
Manufactured from high carbon high chrome steel or alloy tool steel, these gauges offer superior wear resistance and dimensional stability. The robust material selection ensures long service life even under repeated inspection cycles in high-volume production environments.
With a typical hardness range of 58–62 HRC, Plain Morse Taper Gauges provide excellent resistance to abrasion and deformation. This hardness level ensures consistent gauging accuracy while maintaining structural integrity under frequent industrial usage.
Each gauge is precision ground and finely lapped to achieve superior surface finish. This ensures maximum seating contact, smooth insertion, and reliable measurement results without surface scoring or premature wear.
Plain Morse Taper Gauges are manufactured in accordance with ISO, DIN, and GB standards. Taper angle tolerances and dimensional parameters strictly follow Morse taper specifications to ensure global compatibility and acceptance.
Available in Class 1, Class 2, and Class 3 accuracy grades, these gauges meet varying inspection requirements ranging from high-precision aerospace applications to general industrial quality control operations.
Standard sizes include MT1 through MT7, covering common industrial taper dimensions. Custom sizes can also be produced to suit specific spindle or tooling configurations across diverse manufacturing sectors.
Carefully controlled heat treatment and precision finishing processes ensure long-term dimensional stability. This minimizes calibration drift and supports reliable inspection results throughout the gauge’s service life.
Widely used in automotive, aerospace, machine tool manufacturing, heavy engineering, and precision component industries, Plain Morse Taper Gauges support critical taper inspection in tool holders, spindles, sleeves, and adapters.

Tailored Solutions for Specialized Requirements

Dedicated Impex manufacture Plain Morse Taper Gauges according to customer drawings and technical specifications. Special taper angles, non-standard dimensions, and unique tolerance requirements can be precisely produced.
Custom accuracy classes can be developed to meet advanced inspection demands, including high-precision applications in aerospace, defense, and advanced machinery manufacturing sectors.
Customers can select from different tool steel grades based on application requirements. Special heat treatment processes can also be applied to enhance durability or corrosion resistance.
Laser marking, engraving, and special identification coding options are available for easy traceability and inventory control within industrial quality management systems.
Optional surface treatments such as anti-corrosion coatings or protective finishes can be provided for export and storage in harsh environmental conditions.
Custom GO and NO-GO designs can be developed for production-specific inspection methods, ensuring faster and more reliable in-process quality verification.
We support both small prototype quantities and large production batches, maintaining consistent dimensional accuracy across all units.
Gauges can be supplied with calibration certificates traceable to recognized standards, ensuring compliance with customer quality audit requirements.
OEM branding and private labeling services are available for distributors and industrial suppliers worldwide.
Technical experts assist customers in selecting appropriate taper classes, sizes, and tolerance grades to ensure optimal inspection performance and long-term reliability.

Reliable Global Supply & Support

Plain Morse Taper Gauges are exported worldwide to customers across Asia, Europe, the Middle East, Africa, and the Americas. A strong logistics network ensures consistent availability, smooth customs clearance, and dependable delivery for international industrial clients.
All gauges are manufactured in strict accordance with ISO, DIN, and other relevant international standards. This ensures dimensional conformity, tolerance accuracy, and seamless acceptance of Plain Morse Taper Gauges across diverse global engineering markets.
Each gauge is carefully packed using anti-corrosion materials, protective sleeves, and sturdy export-grade cartons or wooden boxes. This packaging method prevents transit damage, moisture exposure, and surface deterioration during long-distance international shipments.
Efficient production planning and coordinated freight management enable prompt dispatch of orders. Strict adherence to delivery timelines helps international buyers maintain uninterrupted production schedules and meet their operational commitments.
Complete export documentation including commercial invoices, packing lists, certificates of origin, inspection reports, and calibration certificates is provided to ensure smooth customs processing and regulatory compliance in importing countries.
Dedicated Impex Co. focuses on building sustainable international relationships through transparent communication, consistent product quality, and dependable export services in Plain Morse Taper Gauges manufacturing.
Dedicated technical and commercial support is provided to international distributors and industrial importers, helping them expand their product portfolio with reliable inspection solutions tailored to regional market requirements.
Dedicated Impex Co. has established a strong reputation as a reliable Indian manufacturer and exporter of precision gauging solutions, supplying Plain Morse Taper Gauges to OEMs, machine tool builders, and quality control departments worldwide.
We offer flexible shipping modes including air freight, sea freight, and express courier services based on order urgency and destination. This flexibility ensures cost-effective and timely global delivery solutions for all customers.

Product FAQ's

1. What is a Plain Morse Taper Gauge used for?

A Plain Morse Taper Gauge is used to check the accuracy, taper angle, alignment, and proper seating of Morse taper holes or shanks in machine tools, ensuring correct tool holding, concentricity, and machining performance.

2. Which Morse taper sizes are available in Plain Morse Taper Gauges?

Plain Morse Taper Gauges are generally available in standard sizes MT1 through MT7. In addition to standard sizes, dedicated impex can supply custom sizes to meet special machine tool or application requirements.

3. What materials are used to manufacture Plain Morse Taper Gauges?

Plain morse taper gauges are manufactured from high carbon high chrome steel or alloy tool steel, chosen for their excellent wear resistance, dimensional stability, toughness, and ability to maintain precision under repeated inspection use.

4. What hardness is recommended for Plain Morse Taper Gauges?

Plain Morse Taper Gauges are typically hardened to a range of 58–62 HRC, which provides a balance between high wear resistance and long-term dimensional accuracy during frequent use in inspection environments.

5. Which standards do Plain Morse Taper Gauges comply with?

They are manufactured according to international standards such as ISO, DIN, or GB, ensuring standardized taper geometry, dimensional tolerances, and compatibility with Morse taper specifications used worldwide.

6. What accuracy classes are available for Plain Morse Taper Gauges?

Plain Morse Taper Gauges are offered in Class 1, Class 2, and Class 3 accuracy levels, allowing users to select the appropriate precision based on inspection requirements, quality control processes, and industry standards.

7. What type of surface finish is provided on Plain Morse Taper Gauges?

The gauges are precision ground and lapped after hardening, resulting in a smooth and accurate surface finish that ensures proper seating, reliable contact, and consistent inspection results.

8. Is customization available for Plain Morse Taper Gauges?

Yes, Dedicated Impex offer customization options include special sizes, tighter tolerances, specific accuracy classes, customized markings, or material variations to meet unique inspection needs or customer specifications.

9. How should Plain Morse Taper Gauges be stored and maintained?

They should be cleaned thoroughly after use, lightly coated with rust preventive oil, stored in protective cases, and handled carefully to avoid nicks, corrosion, or damage that could affect accuracy.
