Hexagon Plug Gauges

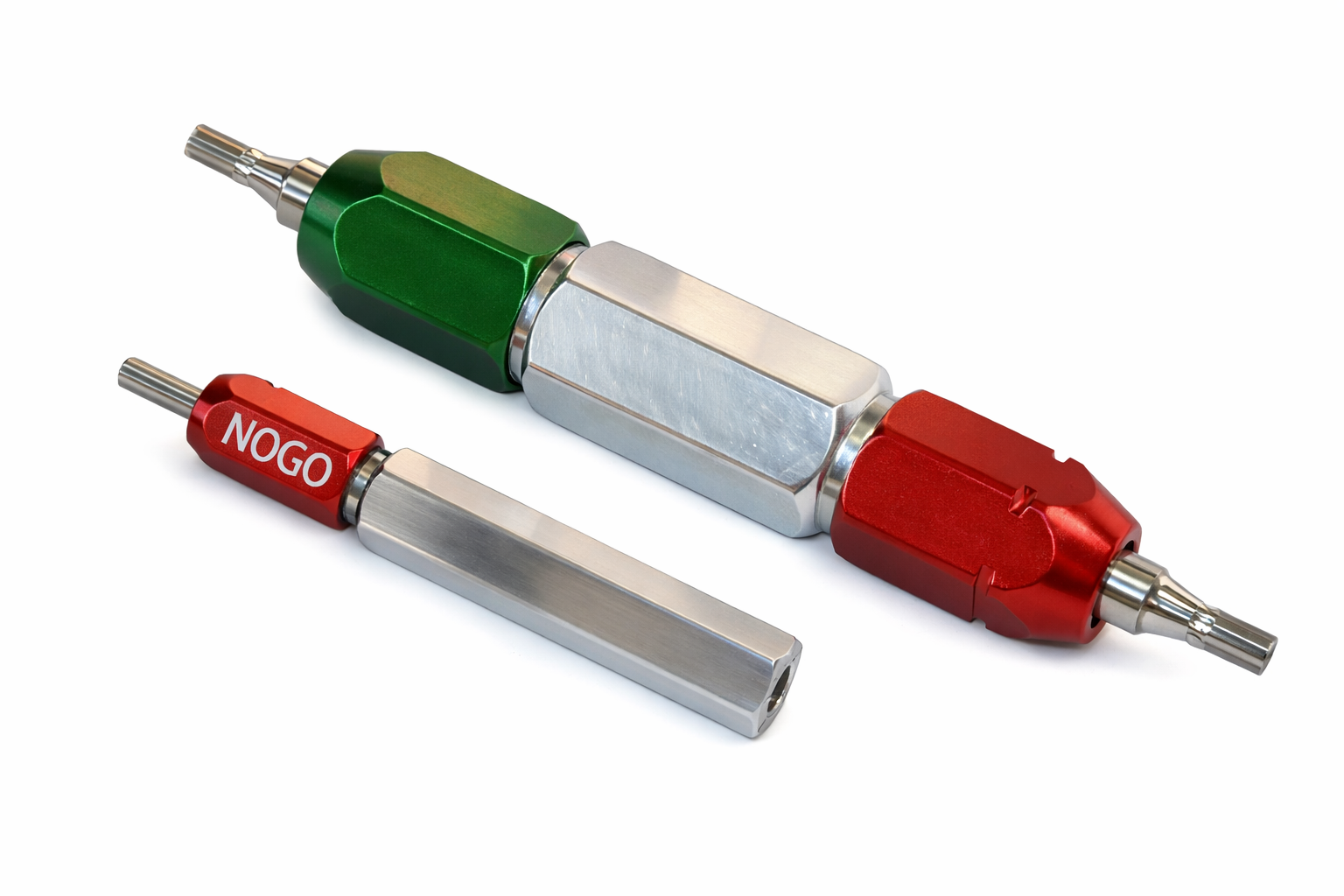

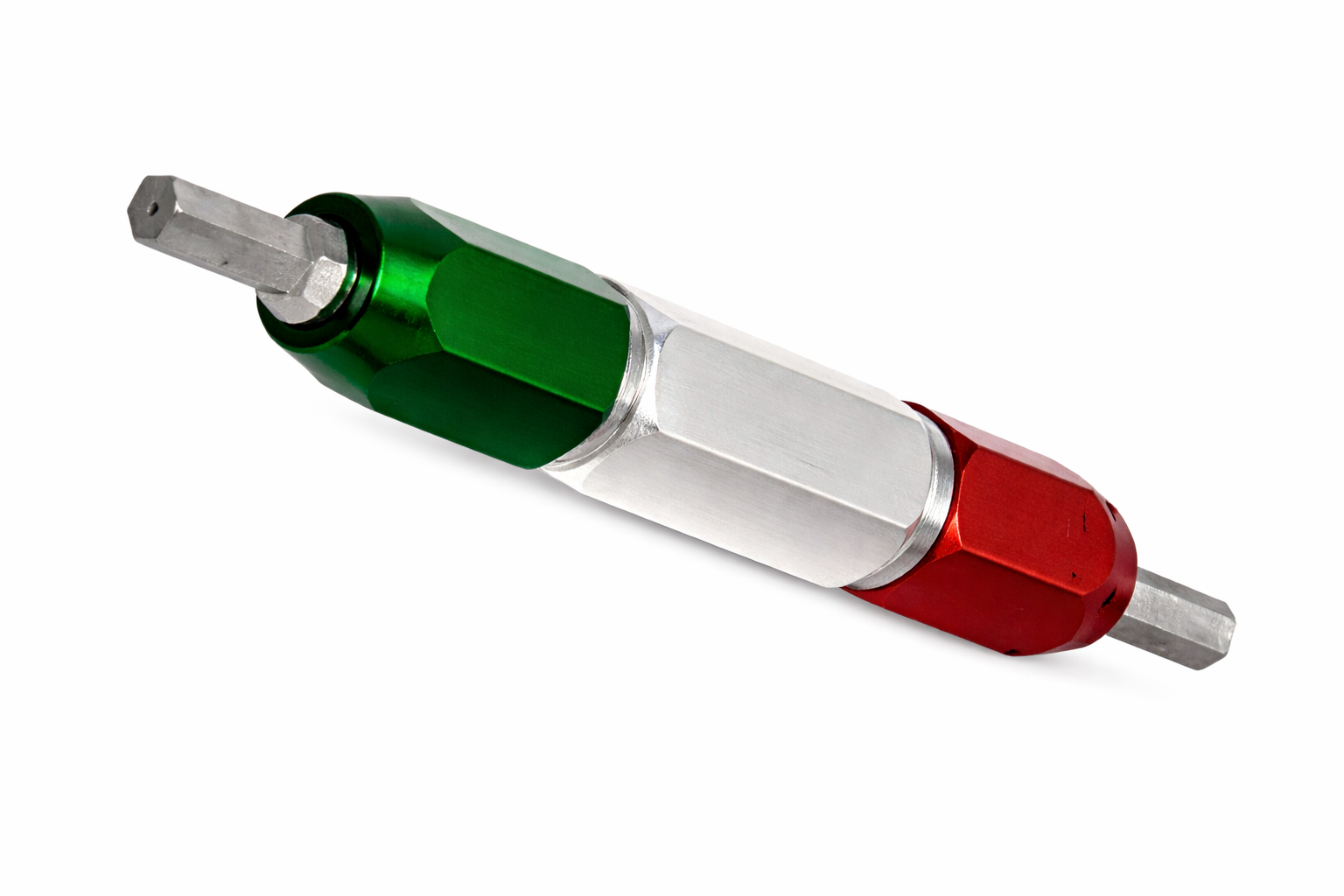

We are leading Hexagon Plug Gauges manufacturers in India, in ANSI/ASME standards. Hexagon plug gauges are used to check the size and accuracy of hexagonal holes in components. The gauges are also available in special custom diameters. DIC gauges are manufactured from high-quality, wear-resistant materials to ensure accuracy, durability, and long service life.

We offer various types of gauges to our customers, such as plain plug gauges, hexagon plug gauges, thread plug gauges, and taper plug gauges.We produce gauges using advanced technology with the best quality raw materials.

Technical Specification
Gauge Type	Hexagon Plug Gauge – Go / No-Go
Measurement Unit	Metric (mm)
Size Range (Metric)	1.5 mm – 36 mm
Size Range (Inch)	1/16" – 1-1/2"
Material	Hardened Tool Steel
Tolerance	h6 / H7 (as required)
Standard	ISO / DIN / ANSI
Hardness	58–62 HRC
Application	Checking hexagonal internal profiles
Customization	Custom sizes, tolerances, and OEM branding available.

Precision That Verifies Internal Hex Accuracy

Hexagon Plug Gauge is manufactured using advanced CNC grinding and precision finishing processes to ensure accurate across-flat dimensions, sharp corner definition, and consistent geometry for reliable inspection of internal hexagonal profiles.
Each Hexagon Plug Gauge is available in Go and No-Go configurations, enabling quick pass/fail inspection on production floors, ensuring components meet dimensional tolerance without complex measurement tools.
Manufactured from high-grade, wear-resistant tool steel, the Hexagon Plug Gauge offers long service life, excellent dimensional stability, and resistance to deformation even under repeated industrial inspection cycles.
The Hexagon Plug Gauge is heat-treated and hardened uniformly to achieve optimal hardness, ensuring minimal wear on edges and accurate inspection results throughout extended usage in mass production environments.
All measuring surfaces of the Hexagon Plug Gauge are precision ground and lapped, ensuring smooth contact with internal hex holes and preventing false readings caused by surface irregularities.
Dedicated Impex Hexagon Plug Gauge is available in a wide range of metric and inch sizes, covering standard and non-standard internal hex profiles required across automotive, aerospace, hydraulics, and general engineering industries.
Each Hexagon Plug Gauge is permanently marked with size, tolerance class, and Go/No-Go identification, enabling easy traceability and reducing the risk of inspection errors on shop floors.
Hexagon Plug Gauge is designed with a user-friendly form, allowing smooth insertion and withdrawal from internal hex holes, reducing operator fatigue during continuous inspection tasks.
Manufactured in accordance with relevant international inspection standards, the Hexagon Plug Gauge ensures compatibility with global quality systems and acceptance in export-oriented manufacturing operations.

Your Trusted Hexagon Plug Gauge Manufacturer

Dedicated Impex specialize in manufacturing precision inspection gauges, and our Hexagon Plug Gauge reflects years of technical expertise, strict process control, and deep understanding of dimensional inspection requirements.
Every Hexagon Plug Gauge undergoes multi-stage inspection, including dimensional verification and surface finish checks, ensuring consistent quality before dispatch to customers worldwide.
Dedicated Impex offer complete customization of Hexagon Plug Gauge including special sizes, tolerance classes, extended lengths, and application-specific designs based on customer drawings or technical requirements.
Our modern manufacturing facility is equipped with advanced grinding, heat treatment, and inspection equipment, enabling precise production of Hexagon Plug Gauges in both small and bulk quantities.
Our technical team assists customers in selecting the correct Hexagon Plug Gauge specifications, helping improve inspection accuracy and production efficiency in their manufacturing processes.
Only certified raw materials are used in Hexagon Plug Gauge production, ensuring superior hardness, wear resistance, and dimensional stability for long-term industrial usage.
We provide OEM manufacturing and private labeling options for Hexagon Plug Gauge, supporting customers in building their own brand identity in global inspection tool markets.
We have successfully supplied Hexagon Plug Gauges to multiple international markets, demonstrating our ability to meet global quality expectations and customer satisfaction consistently.

Precision Gauges Delivered Across Global Markets

Hexagon Plug Gauge is manufactured with export standards in mind, ensuring compatibility with international inspection practices and seamless integration into global quality control systems.
Dedicated Impex Hexagon Plug Gauges meet international dimensional and material standards, making them suitable for customers across automotive, aerospace, oil & gas, and engineering industries worldwide.
Each Hexagon Plug Gauge is packed using export-grade protective packaging to prevent corrosion, damage, or dimensional changes during long-distance international transportation.
We efficiently handle bulk export orders of Hexagon Plug Gauges, ensuring consistent quality, uniform specifications, and timely shipment for large-scale industrial buyers.
Complete export documentation support is provided for Hexagon Plug Gauge shipments, including packing lists, certificates, and compliance documents required for smooth customs clearance.
Hexagon Plug Gauge can be supplied with customer-specific branding, markings, and packaging to support distributors and importers in international markets.
Export consignments of Hexagon Plug Gauge are inspected separately to ensure conformity with agreed specifications, minimizing rejection risks at destination markets.
We customize Hexagon Plug Gauge specifications to match regional standards and customer preferences, supporting smooth entry into diverse international markets.
Our export-oriented approach focuses on building long-term relationships by delivering reliable Hexagon Plug Gauges, consistent quality, and responsive support to global customers.

Product FAQ's

1. What is a Hexagon Plug Gauge?

A Hexagon Plug Gauge is a precision inspection tool used to check internal hexagonal bores. It verifies dimensional accuracy, form, and tolerance compliance of hex sockets. These gauges ensure conformity to engineering standards and maintain strict quality control in manufacturing.

2. What types of Hexagon Plug Gauges are available?

Hexagon Plug Gauges are available in GO and NO GO types based on the limit gauging principle. The GO gauge checks maximum material condition, while the NO GO gauge verifies minimum material condition, ensuring accurate pass/fail inspection of internal hex profiles.

3. What size range is available for Hexagon Plug Gauges?

Hexagon Plug Gauges are available in sizes ranging from 1.5 mm to 36 mm in metric measurements and 1/16″ to 1-1/2″ in inch measurements. Custom sizes can also be provided as per specific requirements.

4. What tolerance accuracy do Hexagon Plug Gauges provide?

Hexagon Plug Gauges provide tolerance accuracy as per h6 and H7 standards, depending on customer requirements. These gauges are manufactured to ensure precise dimensional control and reliable checking of hexagonal internal profiles in industrial applications.

5. What materials are used in manufacturing Hexagon Plug Gauges?

Hexagon Plug Gauges are manufactured using hardened tool steel. These materials provide excellent wear resistance, dimensional stability, corrosion resistance (in stainless variants), and long operational life.

6. What is the hardness level of Hexagon Plug Gauges?

Hexagon Plug Gauges are typically hardened to 58–62 HRC. This hardness level ensures superior wear resistance, prevents deformation, and maintains long-term dimensional accuracy during repeated inspection cycles.

7. What standards do Hexagon Plug Gauges follow?

Hexagon Plug Gauges comply with ANSI / ASME B107.17M and ANSI B18.3 standards for hex socket dimensions and inspection practices. These standards ensure accurate hex profile verification and international quality compliance.

8. How do Hexagon Plug Gauges work?

Hexagon Plug Gauges operate on the limit gauging principle. The GO end must fully enter the hex bore, confirming minimum size compliance. The NO GO end should not enter beyond the specified limit, ensuring dimensional control and quick inspection.

9. Which industries commonly use Hexagon Plug Gauges?

Hexagon Plug Gauges are widely used in automotive, aerospace, heavy engineering, tooling, and fastener manufacturing industries. They are essential for inspecting hex socket screws, precision components, and mechanical assemblies requiring strict dimensional accuracy.

10. Are customization and OEM services available?

Yes, Hexagon Plug Gauges can be supplied with custom sizes, tolerances, marking, laser engraving, and private labeling. OEM branding and export packaging options are available to meet global distributor and industrial customer requirements.

Need Additional Support?

If you didn’t find the information you’re looking for, please connect with our DIC Tools specialists for expert assistance. Our team is ready to support you with product selection, technical guidance, and export inquiries.
