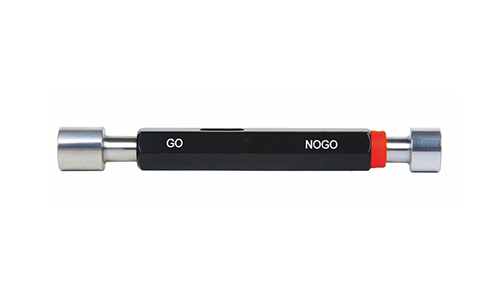

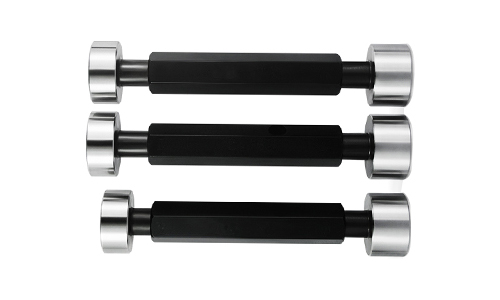

Plain Plug Gauges

Plain Plug Gauges

We are a Exporter of Plain Ring Gauges in India, used for attribute inspection of Plain External Diameter measurement. Plain Ring gauges are used to check plain holes and plain shafts. This is the simplest and most effective way of checking holes and shafts. Plain ring gauges are a good choice if you want to inspect the external diameters of the manufactured parts.

These Gauges are ideal for measuring the outside diameter of workpieces. It is also effective to check out of roundness on the higher side. You can quickly pass or fail parts without undergoing the time-consuming process of taking readings with the conventional measuring instrument with the help of these ring gauges. The plain ring gauges are fabricated using both steel and tungsten carbide. We are a reliable Plain Ring Gauges supplier in India.

Technical Specification
Tool Name Plain Plug Gauges
Gauge Type Go / No-Go
Diameter Range 0.5 mm – 50 mm or custom
Tolerance Classes H7 / H8 (common)
Material Hardened Tool Steel
Hardness 58-62 HRC
Standards ISO / DIN / ANSI / IS
Applications Shaft inspection and gauge setting
Customization Custom sizes, tolerances, branding available
Precision Hole Inspection Tools
  • Plain Plug Gauges are designed for high-precision inspection of cylindrical holes, ensuring strict adherence to dimensional tolerances required in automotive, aerospace, and heavy engineering industries for consistent assembly performance and interchangeability.
  • Manufactured from hardened and stabilized alloy steel, these gauges provide exceptional wear resistance, ensuring long-term dimensional stability even in high-volume production environments.
  • The finely lapped measuring surfaces minimize friction and improve repeatability during inspection, allowing operators to quickly verify hole compliance without damaging components.
  • GO and NO-GO configurations help eliminate subjective measurement errors by providing clear pass/fail inspection criteria aligned with international standards.
  • Progressive Plain Plug Gauges increase inspection efficiency by combining GO and NO-GO elements into a single tool, reducing handling time and boosting shop floor productivity.
  • Each gauge is precisely calibrated and traceable to national and international measurement standards, ensuring reliable inspection accuracy for export-oriented manufacturing sectors.
  • Custom sizes and tolerance grades are available to meet specific engineering drawings, special fit conditions, and OEM production requirements.
  • Superior hardness between 58–62 HRC ensures resistance to wear, corrosion, and dimensional distortion during prolonged industrial use.
  • Laser marking ensures easy identification of nominal size, tolerance class, and gauge type, enhancing traceability and quality management systems.
  • Designed for ergonomic handling and consistent insertion feel, Plain Plug Gauges support operator-friendly inspection and reduce the risk of measurement inconsistency.
Decades of Precision Engineering Excellence
  • Dedicated Impex Co. specializes in manufacturing high-accuracy Plain Plug Gauges engineered for global OEM and industrial markets requiring dependable dimensional verification tools.
  • Our advanced manufacturing setup includes CNC grinding, lapping, and precision heat treatment processes that ensure consistent gauge performance and dimensional reliability.
  • We provide complete customization support, producing gauges as per customer drawings, special tolerances, and international standards for diverse industrial sectors.
  • Our engineering team carefully monitors tolerance control, wear allowance, and gauge calibration to deliver inspection tools that maintain accuracy over extended service life.
  • Dedicated Impex Co. ensures strict material selection and hardness control to provide superior durability and resistance to mechanical stress in production environments.
  • We support bulk supply and export shipments with secure packaging, documentation, and compliance certifications for international clients.
  • Our inspection laboratory verifies each Plain Plug Gauge using calibrated measuring instruments before dispatch to guarantee compliance with required standards.
  • Continuous improvement and innovation enable us to deliver cost-effective and reliable gauging solutions for modern manufacturing challenges.
  • We offer quick turnaround time for custom gauges, supporting urgent industrial inspection requirements worldwide.
  • Our strong quality assurance system ensures consistent product reliability, dimensional accuracy, and customer satisfaction across all supplied gauges.
Commitment to International Quality Compliance
  • Plain Plug Gauges are manufactured following ISO and DIN standards to ensure precise dimensional conformity, strict tolerance adherence, and highly repeatable inspection results across automotive, aerospace, heavy engineering, and precision component manufacturing industries worldwide.
  • Heat treatment processes are carefully monitored and scientifically controlled to achieve optimal hardness levels, uniform microstructure stability, and resistance to thermal stress, thereby preventing dimensional distortion, premature wear, and accuracy loss during prolonged industrial service conditions.
  • Each Plain Plug Gauge undergoes 100% dimensional inspection before dispatch, including verification of size accuracy, roundness, cylindricity, and surface finish parameters using calibrated master equipment to ensure complete compliance with specified engineering standards.
  • Calibration certificates can be provided upon request, ensuring traceability to national and international measurement standards, supporting quality audits, ISO documentation requirements, and export compliance for global customers and OEM manufacturers.
  • Comprehensive quality control procedures include incoming raw material verification, chemical composition testing, in-process dimensional checks, controlled heat treatment validation, and final inspection approval to guarantee consistent gauge performance and reliability.
  • Surface finish quality is achieved and maintained through advanced CNC grinding and precision lapping techniques, producing ultra-smooth gauging surfaces that enable smooth insertion, reduced friction, and consistent bore checking accuracy over extended service life.
  • Continuous internal quality audits, process optimization initiatives, and systematic performance evaluations help maintain global competitiveness, manufacturing excellence, and long-term reliability of Plain Plug Gauges supplied to international markets.

Product FAQ's

1. What are Plain Plug Gauges?

Plain Plug Gauges are precision inspection tools used to check the dimensional accuracy of cylindrical holes. They ensure holes meet specified tolerances by providing GO and NO-GO inspection criteria in manufacturing processes.

2. What is the purpose of GO and NO-GO Plug Gauges?

GO Plug Gauges verify the minimum hole size allowing proper assembly fit, while NO-GO Plug Gauges confirm that the hole does not exceed maximum tolerance limits, ensuring strict dimensional control.

3. What materials are used in Plain Plug Gauges?

Plain Plug Gauges are manufactured from hardened tool steel. These materials provide excellent wear resistance, dimensional stability, corrosion protection, and extended service life in demanding industrial inspection environments.

4. What standards do Plain Plug Gauges follow?

Plain Plug Gauges are produced according to international standards such as ISO, DIN, and other relevant specifications, ensuring reliable dimensional inspection, strict tolerance compliance, and consistent quality control performance.

5. What industries use Plain Plug Gauges?

Plain Plug Gauges are widely used in automotive, aerospace, heavy engineering, oil and gas, precision machining, and general manufacturing industries where accurate bore inspection and consistent dimensional verification are essential for assembly reliability.

6. How do you select the correct tolerance grade for Plain Plug Gauges?

Selecting the correct tolerance grade for Plain Plug Gauges depends on the functional requirement of the component, fit classification, and engineering drawing specifications. Manufacturers typically choose IT grades such as IT5 to IT8 based on required accuracy, assembly performance, and industry standards.

7. Can Plain Plug Gauges be customized?

Yes, Dedicated Impex Co. offers customized Plain Plug Gauges manufactured according to customer drawings, special tolerance requirements, non-standard sizes, and specific industrial standards to meet diverse global OEM and export market needs.

8. What is the hardness of Plain Plug Gauges?

Plain Plug Gauges are heat treated to achieve hardness between 58–62 HRC, providing excellent wear resistance, dimensional stability, and durability for continuous use in high-volume production and precision inspection environments.

9. How are Plain Plug Gauges calibrated?

Plain Plug Gauges are inspected and calibrated using precision measuring instruments traceable to national and international standards. Calibration certificates can be supplied to support quality audits, ISO documentation, and export compliance requirements.

10. Why choose high-quality Plain Plug Gauges?

High-quality Plain Plug Gauges ensure accurate bore verification, reduce production rejection rates, improve assembly performance, maintain strict tolerance control, and enhance overall manufacturing efficiency across small-scale and large-scale industrial operations.

Need Additional Support?

If you didn’t find the information you’re looking for, please connect with our DIC Tools specialists for expert assistance. Our team is ready to support you with product selection, technical guidance, and export inquiries.
📩 Get Expert Tooling Support
