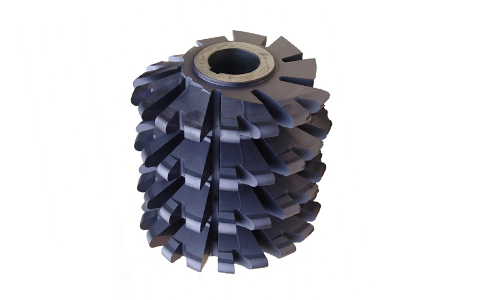

Heavy Duty Roughing Hobs

We are a Manufacturer of Heavy Duty Roughing Hobs in India, supplied in standard and non-standard profiles. Heavy Duty Hobs for hobbing gears contain a cylindrical body formed in its peripheral surface with generally axially extending grooves. It is available in Module Range from m0.5 to m35 and Diameter Range from 20 to 350mm. Hob material is generally HSS in grades M2, M35, M42, ASP2052, and ASP2062.

Our tools are made from high-quality raw materials therefore, it ensures world-class quality and the best performance. We provide all types of material and size ranges based on the customer’s specific drawings and sizes.

Product Description
Product Table

We are a reliable supplier of Heavy Duty Roughing Hobs in India. The Cutters are exported to various countries worldwide.

Material: HSS-CO,PM-HSS, M2 ,M35, M42, ASP 30, ASP2052, ASP2062
Standard: GB, DIN, AGMA, BS
Function: gear hobbing, pre-shaving, pre-grinding, and pre -skiving.
Module Range: m6 to m30
Outside Diameter: 150 to 340mm
Cutting Edge Length: 108 - 540
Hardness: 63 - 67HRC
Accuracy Class: AA/A as per DIN 3968

Module	Outside Dia.	Cutting Edge Length	Total Length	Bore Dia.
6	150	108	140	50
7	150	126	152	50
8	160	144	176	50
9	160	162	134	50
10	170	180	214	60
11	180	138	232	60
12	190	216	250	60
13	200	234	268	60
14	210	252	286	60
15	230	270	310	80
16	240	288	330	80
18	260	318	360	80
20	290	360	406	100
22	300	396	442	100
24	310	432	478	100
27	330	486	592	100
30	340	540	586	100
