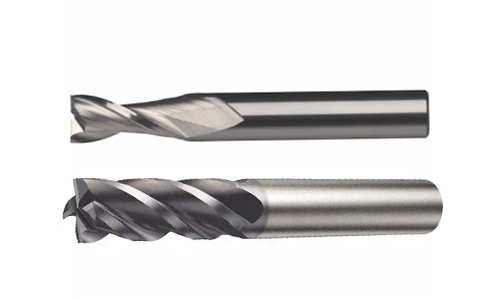

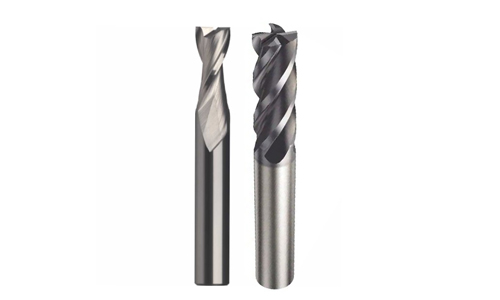

Brazed Carbide End Mills 2 And 4 Flutes

Brazed Carbide End Mills 2 And 4 Flutes

DIC is an exporter of Brazed Carbide End Mills in 2 flute and 4 flute designs, manufactured using high-quality brazed carbide for superior durability and performance. These tools are widely used in engineering and machining industries for efficient cutting of ferrous and non-ferrous materials. The carbide tips are firmly brazed onto a hardened steel body with 40–50 HRC hardness, ensuring strength, wear resistance, and long service life. Compared to solid carbide, they offer a cost-effective solution without compromising cutting efficiency. Our end mills deliver smooth cutting, precise dimensions, and excellent surface finish, even in demanding applications. With strong chip evacuation and stable performance, they are suitable for medium to heavy-duty operations. DIC also provides full customization in size, diameter, and length as per customer requirements, ensuring reliable quality and consistent export supply worldwide.

For more information, feel free to Contact Us by send an email to info@dictoolsindia.com. We also offer custom quotes tailored to your specific project needs.

Technical Specification
Material Brazed Carbide
Number of Flutes 2 Flutes – 4 Flutes
Hardness 40–50 HRC
Diameter Range 3 – 50 mm
Flute Length 2 flute End Mill: 8 – 50 mm
4 flute End Mill: 10 – 60 mm
Coating Options TiN / TiAlN / AlTiN / AlCrN
Standards ISO / DIN / ANSI
Availability Standard & Custom
Precision Carbide Milling Tools Built for Reliable Industrial Performance
  • Precision Engineered Cutting Geometry
    Brazed carbide end mills with 2 and 4 flutes are designed with precision cutting geometry to deliver smooth milling results. Balanced flute construction improves dimensional accuracy, allowing machinists to achieve clean edges, precise profiles, and reliable cutting performance in demanding machining applications.
  • Strong Brazed Carbide Tip Construction
    The carbide tips are securely brazed using advanced bonding techniques that ensure strong attachment and structural stability. This brazed construction provides excellent durability, high resistance to breakage, and reliable cutting performance during demanding milling operations and heavy-load industrial machining environments.
  • Optimized Chip Evacuation Design
    Dedicated Impex offers brazed carbide end mills 2 and 4 flutes designed to support efficient chip evacuation during slotting and deeper cuts. Two flute designs remove chips quickly, while four flute configurations improve stability and surface finish during side milling and precision metal machining operations.
  • Long Lasting Cutting Performance
    High-quality carbide cutting edges maintain sharpness for extended machining cycles. Brazed carbide end mills feature wear-resistant carbide tips that help reduce tool wear, minimize frequent tool replacement, and support consistent machining quality in continuous industrial production environments.
  • Reliable Tools Manufactured by Dedicated Impex
    Brazed carbide end mills manufactured by DIC undergo strict dimensional accuracy checks and quality inspection. Every tool is engineered for stability, balanced cutting performance, and reliable machining efficiency for both CNC milling machines and conventional milling operations.
Industrial Cutting Tool Experts Delivering Precision and Reliability
  • Specialized Cutting Tool Manufacturing
    Our company manufactures brazed carbide end mills 2 and 4 flutes designed for professional machining industries. Advanced production methods and experienced engineering teams ensure each tool delivers consistent accuracy, durability, and reliable milling performance in demanding industrial applications.
  • Strict Quality Control Standards
    Every brazed carbide end mill undergoes thorough inspection procedures including dimensional checks, profile measurement, and visual inspection. These strict quality control processes ensure reliable tool performance and consistent machining results in industrial environments.
  • Reliable Performance for Industrial Machining
    DIC offers brazed carbide end mills engineered to perform efficiently under demanding machining conditions. Strong brazed carbide tips ensure stable cutting operations, reduced vibration, and improved machining productivity across a wide range of metalworking applications.
  • Customized Manufacturing Capabilities
    We offer flexibility in manufacturing various tool sizes and specifications to meet diverse machining requirements. Our brazed carbide end mills provide custom solutions that allow industrial buyers to obtain tools optimized for specific applications, ensuring reliable performance and improved machining stability.
  • Trusted Global Tool Supplier
    With strong industry experience, Dedicated Impex Co. supplies brazed carbide end mills 2 and 4 Flutes and other dependable cutting tools to global industrial customers worldwide. Our focus on precision engineering, consistent product quality, and customer satisfaction makes us a reliable partner for machining industries worldwide.
Industrial Protective Packaging Designed for Safe Global Tool Delivery
  • Protective Tool Packaging System
    Each brazed carbide end mill is packed using protective materials designed to safeguard cutting edges during transportation. The packaging prevents accidental damage, scratches, or impact, ensuring the tools remain in perfect condition when delivered to industrial customers.
  • Individual Tool Safety Protection
    Tools are carefully packed in individual protective sleeves or holders to avoid contact between cutting edges. This packaging method preserves the sharpness of carbide tips of brazed carbide end mills 2 and 4 flutes and prevents damage during storage, handling, and long-distance shipping.
  • Moisture Resistant Packaging Materials
    DIC Tools uses special moisture-resistant packaging materials to protect products from humidity exposure during international transport. This protection helps maintain product quality and prevents corrosion, ensuring they remain ready for immediate use upon delivery and safe long-distance industrial shipment.
  • Heavy Duty Export Carton Packaging
    Strong industrial-grade cartons are used to pack brazed carbide end mills securely for international shipping. These cartons provide structural protection during transport, preventing movement and ensuring the safety of tools throughout global logistics operations.
  • Container Friendly Export Packing
    Dedicated Impex Co. arranges packaging to optimize container loading and transportation efficiency for brazed carbide end mills Structured packing layouts allow safe handling, easy inventory management, and improved shipping stability for distributors and industrial buyers receiving tools across international markets.

Product FAQ's

1. What is a brazed carbide end mill?

A Brazed Carbide End Mill is a milling tool where a carbide cutting tip is permanently brazed onto a hardened steel body. This design combines carbide cutting strength with steel toughness, providing reliable milling performance, stable cutting, good wear resistance, and cost-effective machining for many industrial applications.

2. What is the difference between 2 flute and 4 flute end mills?

A 2 Flute End Mill offers wider chip space and is suitable for slotting and softer materials, while a 4 Flute End Mill provides more cutting edges for smoother finishes and better stability during finishing operations. Both types support efficient milling depending on machining requirements.

3. What diameter sizes are available for brazed carbide end mills?

Brazed Carbide End Mills are commonly available in diameter sizes ranging from 3 mm to 50 mm. This wide diameter range allows machinists to select suitable tool sizes for different machining requirements, including slot milling, profile cutting, and general industrial component manufacturing processes.

4. What is the flute length range for 2 flute and 4 flute end mills?

The flute length range typically varies depending on flute configuration. Two flute brazed carbide end mills usually offer flute lengths from 8 mm to 50 mm, while four flute end mills range from approximately 10 mm to 60 mm, supporting multiple milling applications.

5. What is the purpose of tool coatings in milling cutters?

Tool coatings help improve the performance of milling cutters by reducing friction, minimizing heat generation, and increasing wear resistance. Coatings also protect cutting edges from oxidation and abrasion, allowing the tool to maintain sharpness and deliver consistent machining results during continuous industrial operations.

6. What standards are followed for brazed carbide end mills?

Brazed Carbide End Mills are typically manufactured according to international standards such as ISO, DIN, and ANSI. These standards define dimensional accuracy, tool geometry, and performance requirements, ensuring compatibility with standard machine tool holders and consistent machining reliability across industrial applications.

7. How does a 4 flute end mill improve surface finish?

A 4 Flute End Mill has more cutting edges than a 2 Flute End Mill, allowing it to remove smaller amounts of material per tooth. This results in smoother cutting action, improved dimensional accuracy, and better surface finish during finishing and profiling operations.

8. Why choose Dedicated Impex for brazed carbide end mills?

Dedicated Impex produces Brazed Carbide End Mills using precise grinding, controlled carbide brazing, and strict inspection processes. The tools offer reliable cutting performance, consistent dimensional accuracy, multiple flute and coating options, and dependable machining results, supporting various industrial milling applications across different manufacturing environments.

9. Can brazed carbide end mills be manufactured in custom sizes?

Yes, Brazed Carbide End Mills can be manufactured in customized diameters, flute lengths, coatings, and shank designs according to specific machining requirements. Custom tool manufacturing helps industries achieve better cutting performance, improved machining accuracy, and optimized tool geometry for specialized milling operations and production needs.

10. Does DIC supply brazed carbide end mills globally?

Yes, DIC supplies Brazed Carbide End Mills to customers worldwide through a reliable distribution network. The company ensures secure packaging, consistent product quality, and dependable delivery support, allowing industries in different regions to access high-performance milling tools for their manufacturing operations.

Need Additional Support?

If you didn’t find the information you’re looking for, please connect with our DIC Tools specialists for expert assistance. Our team is ready to support you with product selection, technical guidance, and export inquiries.
