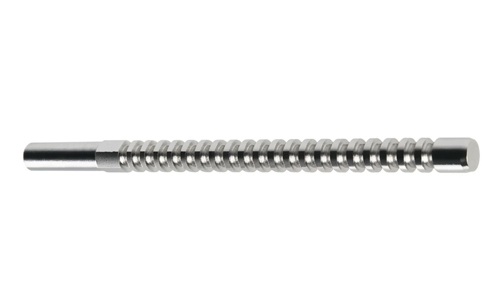

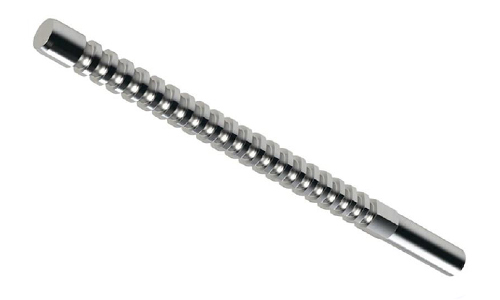

HSS Hexagon Push Broaches (Inch)

HSS Hexagon Push Broaches (Inch)

We are a Manufacturer and Exporter of HSS Hexagon Push Broaches (Inch) designed to generate a hexagon hole in a previously cast or drilled round hole in one pass. These are available in both Inch and Metric sizes. It is well suited for use in a variety of ferrous as well as non-ferrous materials. Hexagon Push Broaches is sized to afford a good cutting range and rigidity. Any type of coating, such as TiN, Ticn, Altin, is also available to make it corrosion-resistant. These Broaches are available in all standard as well as non-standard profiles.

    SPECIFICATIONS AND FEATURES:
  • Material: HSS M2, M35, M42, HSS 4341, ASP 2030, ASP 2052, ASP 2062.
  • Broach length: 4-1/8” to 19-3/4”
  • Pilot Dia.: 1/8” to 1”
  • Tolerance: .1255” to 1.003”
  • Minimum Length of Cut: 3/16” to 5/8”
  • Maximum Length of Cut: 3/8” to 2”
  • Hex Size: 1/8” to 1”
  • Can be supplied with all Types of PVD Coatings
  • Profile: Standard and non -Standard Profile
  • Type: Push Type Broach
HSS Hexagon Push Broaches (Inch)LENGTH OF CUT
Hex SizeToleranceBroach LengthPilot Dia.Drill SizeMin.Max.
1/8".1255"-.1260"4-1/8"1/8"1/8"3/16"3/8"
5/32".1565"-.1570"4-15/16"5/32"5/32"1/4"1/2"
3/16".1880"-.1890"5-1/16"3/16"3/16"1/4"5/8"
7/32".2190"-.2200"5-3/8"7/32"7/32"1/4"3/4"
1/4".2505"-.2515"6"1/4"1/4"1/4"3/4"
9/32".2815"-2825"7-1/4"9/32"9/32"5/16"1"
5/16".3130"-.3140"7-3/4"5/16"5/16"3/8"1"
11/32".3440"-.3450"7-3/4"11/32"11/32"3/8"1-1/4"
3/8".3755"-.3765"8-1/2"3/8"3/8"3/8"1-1/4"
13/32".4065"-.4075"9-5/8"13/32"13/32"1/2"1-3/8"
7/16".4385"-.4395"10-5/8"7/16"7/16"1/2"1-3/8"
15/32".4690"-.4700"11-7/8"15/32"15/32"1/2"1-3/8"
1/2".5005"-0.515"11-7/8"1/2"1/2"1/2"1-3/8"
9/16".5630"-.5640"13-3/4"9/16"9/16"1/2"1-3/8"
5/8".6260"-.6270"16-1/4"5/8"5/8"5/8"2""
11/16".6880"-.6890"16-3/4"11/16"11/16"5/8"2"
3/4".7510"-.7520"17-1/4"3/4"3/4"5/8"2"
7/8".8755"-.8765"18-1/2"7/8"7/8"5/8"2"
1"1.002"-1.003"19-3/4"1"1"5/8"2"
