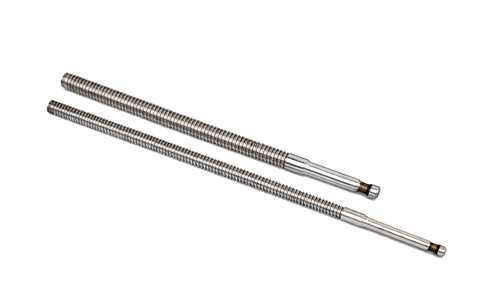

Involute Spline Broaches

DIC is a leading Manufacturer and Exporter of Involute Spline Broaches, delivering high-precision broaching solutions to global industries. With advanced manufacturing capabilities and strict quality control, we produce durable, accurate, and performance-driven broaching tools for demanding industrial applications.

Our involute spline broaches are engineered for precision spline cutting, superior surface finish, and extended tool life, making us a preferred partner for automotive, aerospace, gear manufacturing, and heavy engineering industries worldwide. Every broach undergoes rigorous inspection for pitch accuracy, involute profile correctness, tooth spacing, hardness, and coating quality before dispatch.

Looking for a reliable Involute Spline Broach Manufacturer and Exporter? Contact DIC today for custom solutions, technical consultation, and competitive pricing.

Technical Specification
Material	HSS M2, M35, M42, ASP 2030, ASP 2052, ASP 2060
Max. Length	Up to 2000mm
Max. Od	280mm
Type	Push Type and Pull Type
Standard	ANSI, DIN 5480, JIS
Surface Treatment	Bright Finish / TiN Coated / Black Oxide
Application	Internal Involute Spline Cutting
Industry Applications	Automotive, Aerospace, Oil & Gas, Heavy Engineering

Accurate and reliable tools for smooth spline cutting

Involute Spline Broaches are specially designed for accurate internal spline cutting. They create correct tooth shape, proper involute profile, and even spacing. This helps achieve smooth cutting, good surface finish, and reliable results in regular spline machining work.
Made from strong and durable material, involute spline broaches offer long working life. the balanced tooth design reduces cutting pressure, lowers vibration, and helps machines run smoothly during continuous production and heavy-duty spline cutting operations.
Involute Spline Broaches use a progressive tooth structure that removes material step by step. This ensures uniform cutting, better dimensional accuracy, reduced tool load, and consistent spline quality across all components in batch and mass production.
Heat-treated cutting edges in involute spline broaches improve hardness and toughness. This protects the tool from early wear, chipping, and edge damage while maintaining sharp cutting performance during long machining cycles.
Accurate profile grinding in involute spline broaches ensures correct pitch and smooth spline engagement. This helps produce reliable splines used in automotive parts, gearboxes, and power transmission components requiring tight tolerance and strong fitting.
Dedicated Impex manufactures involute spline broaches under strict quality control. Each broach is checked for profile accuracy, pitch consistency, and surface quality to ensure dependable performance in demanding industrial applications.
Involute Spline Broaches can be used on different materials such as carbon steel, alloy steel, and non-ferrous metals. This makes them suitable for various industries requiring flexible and reliable spline cutting solutions.
DIC ensures precise shank and pull-end grinding for proper alignment. This improves tool stability, reduces machine stress, and supports accurate spline cutting in manual, automatic, and high-speed broaching machines.

Reliable spline broaching solutions backed by engineering expertise

We focus on consistent quality and precision manufacturing, ensuring every involute spline broach delivers accurate cutting results. Our process emphasizes dimensional stability, repeatable performance, and long tool life for professional broaching operations.
Our engineering team understands spline standards, tolerance requirements, and application challenges. This expertise helps us deliver broaches that perform reliably in automotive, industrial machinery, and transmission component manufacturing.
Advanced manufacturing methods ensure precise tooth geometry and smooth cutting action. This reduces machining errors, lowers tool replacement costs, and improves overall production efficiency for spline broaching operations.
DIC Tools follows strict inspection procedures, including profile measurement and dimensional verification. This ensures every broach meets customer expectations for accuracy, consistency, and durability in real production conditions.
We offer dependable technical support for broach selection and application guidance. This helps customers choose the right involute spline broach for their material, machine type, production volume, and required spline accuracy standards.
Our broaches are designed for stable cutting with reduced vibration. This improves surface finish, protects machines, and supports consistent output even during long production runs. It also helps maintain accuracy and tool life.
On-time delivery and reliable supply management ensure uninterrupted production schedules. Customers trust us for consistent availability of high-performance spline broaching tools across regular and urgent industrial requirements.
Dedicated Impex is committed to long-term partnerships by delivering value through quality tools, dependable service, and continuous improvement in broaching technology. We focus on trust, consistency, and customer satisfaction.

Custom-branded broaching tools tailored to your business identity

We provide OEM manufacturing options for involute spline broaches with customization support. Customers can choose dimensions, spline standards, tooth profile, and material grade to suit their machines and application needs.
Custom branding services allow your company name, logo, and identification marks to be added on broaches. This helps build strong brand recognition while maintaining a clean, professional appearance across industrial tool supply chains and distributor networks.
Packaging solutions are designed to ensure both protection and branding appeal. Each broach is packed securely using industrial-grade materials to prevent damage during handling, storage, container loading, and long-distance transportation.
Dedicated Impex supports private labelling with consistent and controlled quality standards. Our OEM involute spline broaches deliver the same accuracy, durability, cutting performance, and reliability as our regular production tools.
Custom shank styles, pull ends, coatings, and surface treatments can be developed based on customer requirements. This flexibility helps align the broaching tool with specific machines, cutting conditions, and production environments.
We work closely with distributors, exporters, and industrial brands to maintain full confidentiality and brand integrity. OEM projects are managed with strict process control, clear documentation, and reliable communication at every stage.
Documentation, part numbering, inspection details, and branding information can be customized for smooth integration into your catalogs, inventory systems, and sales channels, improving customer confidence and easy product identification.
DIC ensures every custom-branded involute spline broach reflects professional quality, stable performance, and strong brand value, helping customers build long-term market presence and trust across global industrial markets.
