Square Broaches

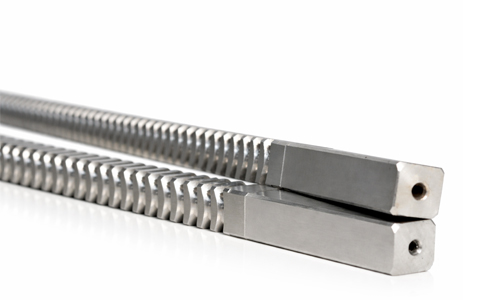

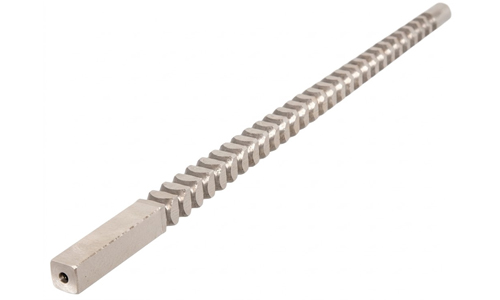

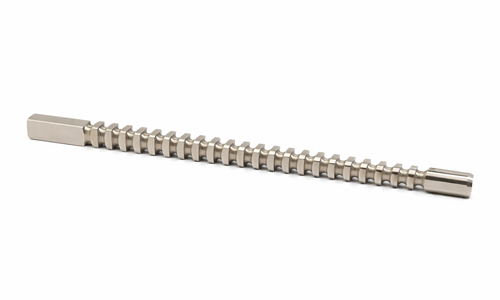

DIC is a Manufacturer and Exporter of Square Broaches, also known as square hole broaches or square push broaches, ideal for cutting square forms in Metal products simply using a pilot Hole and required Broach. Square Broaches are usually designed to generate, in one pass, a square hole in a previously cast or drilled round hole. These are available in Inch and Metric sizes.

Product Description
Product Table

We can also manufacture Square Broaches in standard and non-standard sizes and materials in all surface PVD Coatings.

Technical Specification:

Material: HSS M2, M35, M42, ASP2030, ASP 2052, ASP 2062
Available in all types of Surface Coatings
Types: Inch Square Broaches, Full Square Broaches, Metric Square Broaches
Application/Use: Automobile Industries

Size Square	Tolerance	Dimension Across Corners	Pilot Diameter	Drill Size	Broach Length	Min. Length of Cut	Max. Length of Cut
1/8"	.1250" - .1260"	.1750" - .1770"	.1280"	No. 30	4 5/8"	3/16"	1/2"
5/32"	.1565" - .1575"	.2180" - .2200"	.1585"	No. 21	5 5/8"	1/4"	1/2"
3/16"	.1880" - .1890"	.2620" - .2640"	.1930"	No. 10	5 11/16"	1/4"	5/8"
7/32"	.2190" - .2200"	.3050" - .3070"	.2275"	No. 1	6 7/8"	1/4"	3/4"
1/4"	.2505" - .2515"	.3500" - .3520"	.2651"	17/64"	7"	1/4"	3/4"
9/32"	.2815" - .2825"	.3930" - .3950"	.2964"	19/64"	7 1/4"	3/8"	1"
5/16"	.3130" - .3140"	.4370" - .4390"	.3276"	21/64"	8 1/8"	3/8"	1"
11/32"	.3440" - .3450"	.4810" - .4830"	.3589"	23/64"	9 5/8"	3/8"	1 1/4"
3/8"	.3755" - .3765"	.5230" - .5250"	.3901"	25/64"	9 7/8"	3/8"	1 1/4"
13/32"	.4065" - .4075"	.5680" - .5700"	.4214"	27/64"	10 7/8"	1/2"	1 3/8"
7/16"	.4385" - .4395"	.6110" - .6130"	.4526"	29/64"	11 3/8"	1/2"	1 3/8"
15/32"	.4690" - .4700"	.6560" - .6580"	.4995"	1/2"	12 1/2"	1/2"	1 3/8"
1/2"	.5005" - .5015"	.6970" - .6990"	.5307"	17/32"	12 5/8"	1/2"	1 3/8"
9/16"	.5630" - .5640"	.7860" - .7880"	.5932"	19/32"	14 7/8"	1/2"	1 1/2"
5/8"	.6260" - .6270"	.8710" - .8730"	.6557"	21/32"	16 13/16"	5/8"	1 5/8"
11/16"	.6885" - .6895"	.9610" - .9630"	.7495"	3/4"	18 1/2"	5/8"	1 5/8"
3/4"	.7510" - .7520"	1.0450" - 1.0470"	.8120"	13/16"	18 7/8"	5/8"	1 5/8"
7/8"	.8765" - .8775"	1.2280" - 1.0300"	.9370"	15/16"	22 3/4"	1/2"	2"
1"	1.0020" - 1.0030"	1.4030" - 1.4050	1.0932"	1-3/32"	24 1/2"	1/2"	2"
1"	1.0020" - 1.0030"	1.4030" - 1.4050"	1.0932"	1-3/32"	24 1/2"	1/2"	2"
