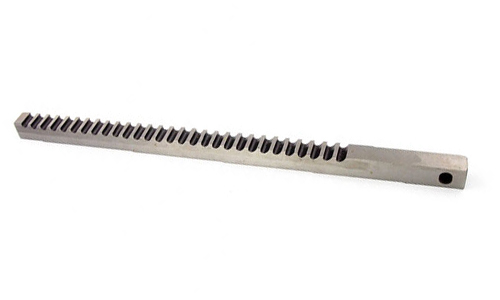

Keyseating Broaches

Keyseating Broaches

DIC is a Manufacturer and Exporter of Keyseating Broaches. The keyseating Broaches sizes range from 1/16” to 1”. These are available in both American Standard and Metric Sizes. All Standards are available with TiN or TiAIN Coatings. We also offer Types AFS and GP Keyseating Broaches, and Type AF features superior tooth design. Both Push Type and Pull Type Broaches can be supplied by us. The Material used for making Keyseating Broaches is HSS, or it can also make it as per customer requirement of material and size.

    SPECIFICATIONS AND FEATURES:
  • Material: HSS M2, M35, M42, ASP 2030, ASP 2052, ASP 2062
  • Types: Push Type and Pull Type
  • Available in Both Inch and Metric Standards
  • Broach Size: 1/16” to 1”
  • Keyway width tolerance: .0625" to 1.0025"
  • Minimum length of cut: 5/8" to 1 1/16"
  • Maximum Length of cut: 1 7/8" to 5 3/16"
  • Overall Broach length: 16” to 20”
Broach Size Keyway Width Tolerance Width x Body Overall LengthMin. Length of CutMax. Length of Cut
1/16".0625" - .0635"3/16" x 3/8"16"5/8"1 7/8"
3/32".0937" - .0947"3/16" x 3/8"16"5/8"1 7/8"
1/8".1252" - .1262"3/16" x 7/8"16"5/8"1 7/8"
5/32".1564" - .1574"3/16" x 1/2"16"5/8"1 7/8"
3/16".1877" - .1887"3/16" x 9/16"16"5/8"1 7/8"
3/16".1877" - .1887"3/16" x 3/4"20"5/8"3 1/8"
1/4".2502" - .2512"1/4" x 3/4"16"5/8"1 5/8"
1/4".2502" - .2512"1/4" x 3/4"20"5/8"3 1/8"
5/16".3127" - .3137"5/16" x 7/8"16"1 1/16"3 3/16"
5/16".3127" - .3137"5/16" x 7/8"20"1 1/16"5 3/16"
3/8".3755" - .3765"3/8" x 7/8"16"1 1/16"3 3/16"
3/8".3755" - .3765"3/8" x 7/8"20"1 1/16"5 3/16"
7/16".4380" - .4390"7/16" x 1"16"1 1/16"5 3/16"
7/16".4380" - .4390"7/16" x 1"20"1 1/16"5 3/16"
1/2".5006" - .5016"1/2" x 1"20"1 1/16"5 3/16"
9/16".5630" - .5640"9/16" x 1"20"1 1/16"5 3/16"
5/8".6260-62705/8" x 1"20"1 1/16"5 3/16"
3/4".7515" - .7525"3/4" x 1"20"1 1/16"5 3/16"
7/8".8765" - .8775"7/8" x 1"20"1 1/16"5 3/16"
1"1.0015" - 1.0025"1" x 1"20"1 1/16"5 3/16"
