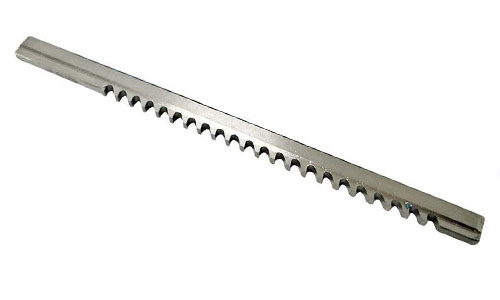

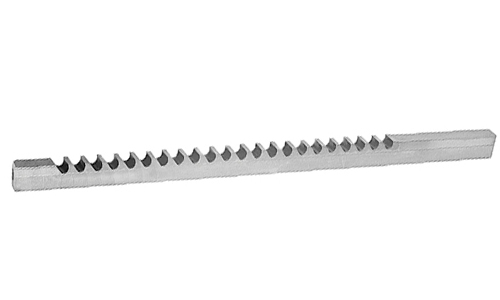

Pull-Type Keyway Broaches

We are a Manufacturer and Exporter of Pull-Type Keyway Broaches used in high-volume production. These are available in Both Inch as well as Metric Sizes. Pull Type keyway Broaches are available either industry-standard 500 series or 600 series. We are fully equipped to supply special Pull Type Keyway Broaches to your specifications. All standards are available with TiN or TiAIN Coatings. We can provide all standard and non-standard Pull Type Keyway Broaches per specific requirements.

Product Description
Product Table

TECHNICAL SPECIFICATIONS:

Material: HSS M2, M-35 and M3 Class 2 Grade Steel
Length: up to 1.6 meter
Broach Length: 127mm to 515 mm
Type: Push and Pull Type

Nom Dim A	Decimal Dim A	Min Hole Size	Min - Max Length of Cut	B	C	D	E	F	G	#of Cuts	Thread Size
1/16"	.0635"	3/8"	3/8 - 1 1/4"	0.1552	20	0.313	0.271	7 13/16	0.042	1	1/4-20
3/32"	.0948"	7/18"	1/2 - 1 1/2"	0.1865	24	0.367	0.309	8 1/4	0.058	1	5/16-18
3/32"	.0948"	5/8"	5/8 - 2 1/2"	0.249	33	0.491	0.433	10	0.058	1	3/8-16
1/8"	.126"	1/2"	1/2 - 1 1/2"	0.249	30	0.438	0.364	9	0.074	1	3/8-16
1/8"	.126"	7/8"	5/8 - 2 1/2"	0.3115	33	0.594	0.52	10	0.074	1	1/2-13
5/32"	.1572"	19/32"	1/2 - 1 1/2"	0.249	30	0.525	0.436	9	0.089	1	3/8-16
5/32"	.1572"	23/32"	5/8 - 2 1/2"	0.3115	33	0.625	0.536	10	0.089	1	1/2-13
3/16"	.1885"	11/16"	5/8 - 2 1/2"	0.374	36	0.581	0.476	10	0.105	1	1/2-13
3/16"	.1885"	15/16"	11/16 - 3 1/2"	0.374	36	0.796	0.691	10 11/16	0.105	1	1/2-13
7/32"	.2198"	11/16"	5/8 - 2 1/2"	0.374	33	0.557	0.437	10	0.12	1	1/2-13
11/32"	.2198"	15/16"	11/16 - 3 1/2"	0.374	42	0.813	0.693	11 1/16	0.12	1	1/2-13
1/4"	.251"	11/16"	5/8 - 2 1/2"	0.374	36	0.612	0.476	10	0.136	1	1/2-13
1/4"	.251"	1"	11/16 - 4"	0.499	45	0.877	0.741	12	0.136	1	5/8-11
1/4"	.251"	1 7/16"	7/8 - 6"	0.624	51	1.25	1.114	13 3/4	0.136	1	3/4-10
9/32"	.2828"	7/8"	11/16 - 4"	0.499	42	0.716	0.564	11 5/8	0.152	1	5/8-11
9/32"	.2828"	1 1/4"	7/8 - 6"	0.499	51	1.093	0.941	13 1/2	0.152	1	5/8-11
5/16"	.314"	1"	11/16 - 4"	0.499	45	0.908	0.741	12	0.167	1	5/8-11
5/16"	.314"	1 5/16"	7/8 - 6"	0.499	51	1.158	0.991	13 3/4	0.167	1	5/8-11
3/8"	.3765"	1 1/16"	11/16 - 4"	0.499	45	0.938	0.739	12	0.199	1	5/8-11
7/16"	.439"	1 5/16"	11/16 - 4"	0.624	48	1.39	1.16	12	0.23	1	3/4-10
7/16"	.439"	2"	1 - 8"	0.624	48	1.611	1.496	15 5/8	0.23	2	3/4-10
1/2"	.5015"	1 1/2"	11/16 - 4"	0.624	48	1.312	1.051	12	0.261	1	3/4-10
1/2"	.5015"	1 1/2"	1 - 8"	0.624	48	1.377	1.246	16 1/2	0.261	2	3/4-10
9/16"	.5645"	1 3/4"	11/16 - 4"	0.6865	54	1.438	1.146	11 13/16	0.292	1	1-8
9/16"	.5645"	1 5/8"	1 - 8"	0.6865	51	1.391	1.245	16	0.292	2	1-8
9/16"	.5645"	2 1/4"	1 1/8 - 12"	0.874	60	1.641	1.495	20	0.292	2	1-8
5/8"	.627"	1 7/8"	1 1/16 - 4"	0.749	60	1.625	1.301	12	0.324	1	1-8
5/8"	.627"	2 1/2"	1 - 8"	0.874	54	1.657	1.495	16 3/8	0.324	2	1-8
5/8"	.627"	2 1/4"	1 1/8 - 12"	0.874	60	1.657	1.495	20	0.324	2	1-8
3/4"	.752"	1 7/8"	11/16 - 4"	0.874	60	1.625	1.239	12	0.386	1	1-8
3/4"	.752"	2"	1 - 8"	0.999	60	1.688	1.495	16 1/4	0.386	2	1 1/4 - 7
3/4"	.752"	2 1/4"	1 1/8 - 12"	0.999	60	1.688	1.56	20	0.386	3	1 1/4 - 7
7/8"	.877"	2 1/4"	11/16 - 4"	1.124	63	1.875	1.426	12 3/8	0.449	1	1 1/4 - 7
7/8"	.877"	2 1/4"	1 - 8"	1.124	63	1.719	1.494	15 3/4	0.449	2	1 1/4 - 7
7/8"	.877"	2 1/4"	1 1/8 - 12"	1.124	63	1.719	1.569	20	0.449	3	1 1/4 - 7
1"	1.002"	2 1/4"	5/8 - 2 1/2"	1.249	63	1.75	1.239	10 1/2	0.511	1	1 1/2 - 6
1"	1.002"	2 1/4"	7/8 - 6"	1.249	63	1.75	1.494	14 1/4	0.511	2	1 1/2 - 6
1"	1.002"	2 1/4"	1 1/8 - 12"	1.249	63	1.75	1.58	20	0.511	3	1 1/2 - 6
