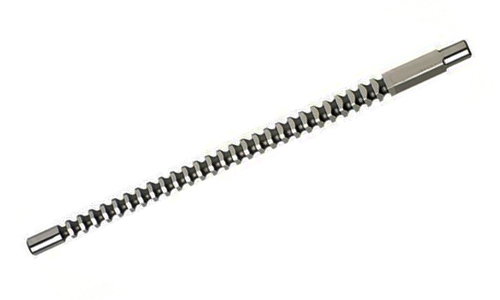

HSS Square Push Broaches (Metric)

HSS Square Push Broaches (Metric)

We are a Manufacturer and Exporter of HSS Square Push Broaches (Metric), usually designed to generate a standard square hole in one pass in a previously done round hole. It is made of HSS in grades M2, M35, M42, ASP 2030, ASP 2052, and ASP 2062. Our range of Square Push Broaches (Metric) is ideal for cutting accurate square forms in metal products by using a pilot hole and required Broach. Each tooth of Broach is progressively larger, and each cuts slightly deeper than the tooth before. These square broaches are available in Metric Size. It is well suited for use in a variety of ferrous and non-ferrous materials.

    All standard and non-standard Square Push Broaches can be supplied by us as per specific requirement.

    SPECIFICATIONS AND FEATURES:
  • Material: HSS M2, M35, M42, ASP 2030, ASP 2052, ASP 2062
  • Broach length : 5-9/16”-24-9/16”
  • Hex Size : 4mm to 25mm
  • Drill Size: 4.2mm to 27mm
  • Drill Size: 4.2mm to 27mm
  • Maximum length of cut: 5/8" to 1- 3/4"
  • Can be supplied in all types of coatings
  • Size: Metric
  • Well suited for use in a variety of ferrous and non-ferrous material
HSS Hexagon Push Broaches (Metric)LENGTH OF CUT
Hex SizeToleranceBroach LengthPilot Dia.Drill SizeMin.Max.
4mm.1580"-.1585"5-9/16".1655"4.2mm5/16"5/8"
5mm.1973"-.1983"6-7/8".2074"5.2mm3/8"3/4"
6mm.2367"-.2377"7".2500"6.35mm3/8"3/4"
8mm.3155"-.3165"8-3/16".3267"8.3mm7/16"7/8"
10mm.3942"-.3952"10-7/8".4057"10.3mm1/2"1"
12mm.4729"-.4739"12-1/2".4921"12.5 mm5/8"1-1/4"
14mm.5517"-.5527"14-7/8".5905"15mm3/4"1-1/2"
16mm.6310"-.6320"16-13/16".6693"17mm7/8"1-3/4"
18mm.7092"-.7102"18-1/2".7874"20mm7/8"1-3/4"
20mm.7879"-.7889"18-7/8".8661"22mm7/8"1-3/4"
22mm.8666"-.8676"23-1/4".9448"24mm7/8"1-3/4"
24mm.9454"-.9464"24-9/16"1.0236"26mm7/8"1-3/4"
25mm.9848"-.9858"24-9/16"1.0630"27mm7/8"1-3/4"
