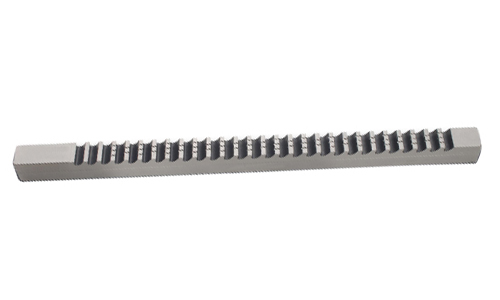

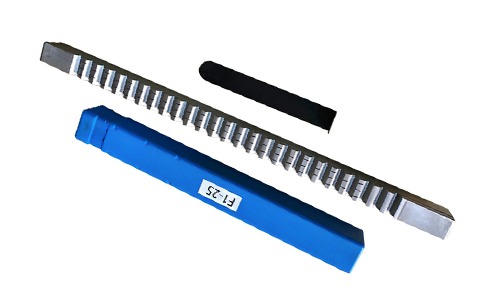

Standard Keyway Broaches

Standard Keyway Broaches

We are a trusted manufacturer and exporter of Standard Keyway Broaches, offering precision-engineered solutions for accurate and efficient keyway cutting. Our broaches are designed to deliver consistent performance, excellent dimensional accuracy, and smooth surface finishes across various industrial applications. Manufactured using advanced processes, these tools ensure durability, reliability, and long operational life even in high-production environments. We provide a comprehensive range of standard sizes to meet diverse requirements, along with customization options tailored to specific client needs, including special dimensions, profiles, and design modifications as per drawing or application requirements. Each product undergoes strict quality checks to ensure compliance with international standards. With strong global export capabilities, competitive pricing, and timely delivery, we are committed to providing superior products and building long-term relationships with customers worldwide through dependable service and consistent quality.

Technical Specification
Material HSS, M2, M35, M42, ASP 2030, ASP 2052, ASP 2060
Type Push and Pull Type
Keyway Width (mm) 2 mm to 20 mm
Broach Length (mm) 160 mm to 500 mm
Standard ANSI or DIN (standard series)
Hardness 62–65 HRC
Application Internal keyways in gears, pulleys, sprockets, hubs
Shims Supplied Yes (for final sizing adjustment)
Customization Available

Click here to get the technical specification.

Engineered Accuracy That Defines Reliable Keyway Formation
  • Standard Keyway Broaches use controlled tooth progression to remove material smoothly, reduce cutting shock, and maintain uniform slot sizes, ensuring stable machining and proper mechanical fit in shaft and hub applications.
  • Optimized material selection and controlled hardness give balanced strength to the broach body, helping teeth resist bending, stay sharp longer, and deliver consistent cutting performance during repeated use and long production runs.
  • Precision tooth spacing in standard keyway broaches distributes cutting load evenly, lowers stress on individual teeth, improves keyway surface quality, and allows smooth, vibration-free broaching in continuous industrial operations.
  • DIC ensures proper straightness along the broach length to prevent cutting deviation, maintain parallel keyway walls, achieve accurate depth, and support reliable engagement between mating mechanical components.
  • Smoothly finished flutes in standard keyway broaches reduce friction and heat during cutting, support easy chip movement, improve surface finish, and reduce tool wear when broaching medium- to high-strength materials under continuous machining conditions.
  • Controlled sharpening geometry ensures each tooth cuts evenly, avoids uneven load buildup, improves cutting consistency, and delivers repeatable results across multiple workpieces without frequent tool adjustments.
  • Dedicated Impex follows systematic quality checks to ensure every standard keyway broach provides consistent cutting action, reliable dimensions, and predictable performance for both batch production and repetitive machining needs.
  • Batch-wise inspection and process control maintain uniform size and performance across identical broaches, allowing easy tool interchangeability, reduced setup time, and consistent production output.
Practical Broaching Solutions for Real-World Industrial Demands
  • Standard Keyway Broaches are commonly used in transmission component production, where accurate internal keyways are required to ensure controlled torque transfer and prevent rotational slippage between shafts and mounted components.
  • Industrial pump and compressor manufacturers rely on keyway broaching to produce consistent shaft slots, enabling stable coupling alignment and reducing vibration-related wear during long-term continuous equipment operation.
  • In gearbox manufacturing, standard keyway broaches support precise internal slot creation in hubs and gears, helping maintain load balance, gear meshing accuracy, and reliable mechanical power transmission under variable operating conditions.
  • Dedicated Impex provides standard keyway broaches that are widely used by machine tool builders for producing internal drive slots, ensuring accurate motion transfer, controlled rotation, and dependable performance in precision-driven mechanical systems.
  • General engineering workshops depend on keyway broaches for versatile machining needs, allowing accurate slotting across multiple shaft diameters and materials without complex tooling changes or specialized machine setups.
  • Maintenance and refurbishment operations use standard keyway broaches to restore worn or damaged slots, ensuring proper component engagement and extending the usable life of industrial machinery and assemblies.
  • DIC Tools offer standard keyway broaches for agricultural and construction equipment manufacturers, enabling the production of rugged drive components designed to withstand fluctuating loads, dust exposure, and demanding operational environments.
  • Industrial automation equipment manufacturers use keyway broaches to achieve consistent internal slots in rotating elements, ensuring smooth synchronization, reliable torque control, and dependable system functionality.
Protective, Organized, and Shipment-Ready Broach Packaging Solutions
  • Standard Keyway Broaches are packed using edge-protection focused methods that shield cutting teeth from impact damage, ensuring cutting geometry remains intact throughout long-distance transportation and repeated material handling stages.
  • Individual packing keeps broaches safely separated, preventing tooth damage, surface scratches, and alignment problems during transportation and warehouse storage, while also ensuring easy handling, quick identification, and readiness for immediate use upon delivery.
  • Moisture-resistant wrapping materials protect standard keyway broaches from oxidation during transit, preserving surface condition and ensuring tools remain ready for use upon arrival without additional cleaning or preparation.
  • Rigid outer packaging provides structural stability during stacking and container movement, reducing deformation risk and maintaining internal packaging alignment throughout international logistics operations.
  • Dedicated Impex Co. designs export packaging layouts that simplify identification, handling, and stock management, allowing distributors to manage inventory efficiently while maintaining professional presentation standards.
  • Internal cushioning systems absorb transport vibrations, protecting broach straightness and preventing micro-level damage that could compromise cutting accuracy during initial machining use.
  • Space-efficient packaging configurations for standard keyway broaches support optimized container loading, reduce shipping volume without compromising protection, and help customers manage logistics costs effectively.
  • Clear labelling and sealed documentation compartments support smooth customs processing and fast verification, ensuring broaches reach end users securely, traceably, and in confirmed shipment condition.

Product FAQ's

1. What are Standard Keyway Broaches?

Standard Keyway Broaches are specialized internal cutting tools used to form straight, precise key slots inside mechanical components. They remove material progressively in controlled steps, ensuring accurate keyway size, proper key fit, and stable torque transmission in industrial assemblies.

2. What types of Standard Keyway Broaches are available?

Standard Keyway Broaches are available in both push type and pull type designs. Push broaches are commonly used on arbor presses, while pull broaches are preferred for longer strokes and higher production environments requiring stable cutting action.

3. What keyway width range is supported?

Standard Keyway Broaches support keyway widths ranging from 2 mm to 20 mm. This wide range allows manufacturers to machine small precision components as well as larger industrial parts while maintaining accurate keyway geometry and consistent dimensional control.

4. Which standards do Standard Keyway Broaches follow?

Standard Keyway Broaches are produced according to ANSI or DIN standard series. Compliance with international standards ensures compatibility with standard bushings, fixtures, and machines, providing reliable performance and interchangeability across global manufacturing environments.

5. How do push and pull broaches differ in use?

Push Broaches are driven through the workpiece using a press, making them suitable for shorter strokes. Pull broaches are pulled completely through the component, offering smoother cutting and better alignment for deeper keyways or higher production requirements.

6. Can Standard Keyway Broaches be customized?

DIC Tools offers customization for Standard Keyway Broaches to match specific customer needs. Variations can include non-standard widths, extended or reduced lengths, alternative tool materials, special coatings, and precise tolerance modifications to suit unique applications, machine limitations, or targeted production requirements.

7. What quality checks are performed on these broaches?

Quality checks include dimensional inspection, hardness testing, surface finish evaluation, and visual examination. These inspections ensure that each broach meets required standards for accuracy, durability, and consistent cutting performance.

8. What load capacity can Standard Keyway Broaches handle?

Load capacity depends on broach size, tooth geometry, and workpiece material, and when correctly selected and installed, standard keyway broaches can safely handle consistent cutting forces while maintaining stable and reliable keyway machining performance.

9. Are Standard Keyway Broaches suitable for mass production?

Yes, Standard Keyway Broaches are specifically engineered for mass production environments, delivering consistent tooth geometry, precise dimensional accuracy, and stable cutting performance, making them ideal for repetitive broaching operations in automotive, industrial machinery, and power transmission manufacturing applications.

10. In which countries do DIC export Standard Keyway Broaches?

Dedicated Impex exports Standard Keyway Broaches to the USA, Canada, Germany, Italy, France, UK, Turkey, UAE, Saudi Arabia, Indonesia, South Africa, Brazil, Mexico, Australia, and other countries supporting global industrial buyers with standard-compliant products and reliable supply capabilities.

Need Additional Support?

If you didn’t find the information you’re looking for, please connect with our DIC Tools specialists for expert assistance. Our team is ready to support you with product selection, technical guidance, and export inquiries.
