Thread Gauges

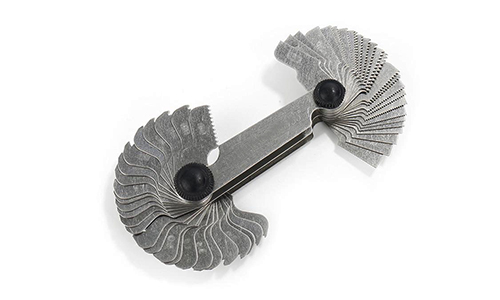

Pitch Gauges

We are exporter of Pitch Gauge, a precision measuring tool widely used for accurate thread identification in industrial and engineering applications. This instrument is also known as a Thread Pitch Gauge and Screw Pitch Gauge, as it helps determine the pitch of both internal and external threads quickly and efficiently.

Pitch gauges are designed with multiple precisely cut blades, each marked with specific pitch sizes for metric and imperial standards. Manufactured from high-grade hardened steel, they ensure durability, wear resistance, and long service life. These gauges are ideal for workshops, quality control departments, maintenance teams, and production units where fast and reliable thread verification is essential.

Contact us today to learn more about our complete range of thread gauges.

Technical Specification
Product Name Pitch Gauge (Thread Pitch Gauge / Screw Pitch Gauge)
Measuring Type Metric, Unified (UNC/UNF), Whitworth (BSW/BSF), ACME, BSP
Measuring Range (Metric) 0.25 mm to 3.00 mm pitch or Custom
Measuring Range (Imperial) 4 TPI to 36 TPI or Custom
Number of Leaves 16 to 24 blades or Custom
Material High-quality stainless steel or hardened steel
Application External & Internal Thread Identification
Customization Available
Precision Thread Identification with Reliable Performance
  • Our Pitch Gauges, also known as Thread Pitch Gauges or Screw Pitch Gauges, are manufactured with precisely cut blades to ensure accurate identification of thread pitch. Each leaf is profile-ground to match exact thread standards, enabling quick and reliable verification in production and quality control environments.
  • These gauges are available in Metric, Unified (UNC/UNF), Whitworth (BSW/BSF), BSP, and ACME thread forms. This wide compatibility makes them suitable for diverse industrial applications including automotive, heavy engineering, maintenance workshops, and manufacturing units requiring multi-standard inspection tools.
  • Manufactured from high-grade alloy steel, each blade is hardened and tempered to provide excellent wear resistance and long service life. The robust construction ensures dimensional stability even after repeated usage in demanding industrial conditions.
  • Each leaf is permanently etched or laser-marked with pitch values in millimeters or threads per inch (TPI). Clear marking allows operators to quickly select the correct blade, reducing inspection time and improving overall productivity.
  • Pitch Gauges are designed for checking both internal and external thread pitches by matching the blade teeth with the thread profile. This ensures accurate pitch identification without complex measuring instruments.
  • Our Thread Pitch Gauges conform to relevant ISO, ANSI, BS, and DIN standards, ensuring reliable and globally accepted measurement practices across different industries and markets.
Quality, Reliability & Engineering Excellence
  • Dedicated Impex Co. brings extensive experience in manufacturing precision measuring instruments. Every Pitch Gauge is produced under strict quality control procedures to ensure dimensional accuracy, consistency, and repeatable performance.
  • Each gauge set undergoes thorough inspection before dispatch. We ensure accurate blade profiling, proper hardness, smooth operation, and correct marking to deliver reliable tools for industrial inspection applications.
  • Dedicated Impex offer customized Pitch Gauges tailored to specific thread standards, pitch combinations, or special industrial requirements. Custom branding and packaging options are also available for OEM clients and distributors.
  • Our manufacturing efficiency allows us to supply premium-quality Thread Pitch Gauges at competitive prices without compromising on material strength, precision, or finishing standards.
  • Our products are widely used by engineering companies, maintenance teams, inspection departments, and exporters who require dependable and durable thread measuring solutions.
  • We operate with modern machinery and precision grinding equipment to ensure accurate blade profiling and uniform pitch formation. Our controlled production environment helps maintain dimensional consistency, ensuring every Thread Pitch Gauge delivers dependable and repeatable measurement results.
  • Dedicated Impex Co. follows standardized manufacturing procedures to maintain uniformity across production batches. This ensures that every Screw Pitch Gauge supplied to clients maintains consistent pitch accuracy and profile precision, supporting reliable inspection processes.
  • Dedicated Impex provide complete OEM solutions including customized pitch combinations, special markings, logo engraving, and branded packaging. This allows distributors and international partners to market high-quality Thread Pitch Gauges under their own brand name confidently.
Supplying Precision Tools Across Global Markets
  • Dedicated Impex Co. has strong experience in exporting Pitch Gauges, Thread Pitch Gauges, and Screw Pitch Gauges to international markets. Our structured export process ensures smooth coordination from manufacturing to final delivery, meeting global industrial supply standards efficiently.
  • We supply precision thread measuring tools to clients across Asia, Europe, the Middle East, Africa, and other international regions. Our understanding of varied market requirements allows us to deliver products that comply with regional industrial specifications and expectations.
  • All Pitch Gauges are manufactured in accordance with recognized ISO, ANSI, DIN, ans IS standards. This ensures compatibility with global thread systems and supports seamless usage in diverse engineering and manufacturing industries worldwide.
  • We use durable, moisture-resistant, and protective packaging solutions to prevent rust, transit damage, or blade distortion during long-distance shipping. Proper cushioning and labeling ensure safe arrival at the customer’s destination.
  • We efficiently handle large-volume export orders for distributors, wholesalers, and industrial suppliers. Our production planning system ensures consistent supply capability for long-term global partnerships.
  • Through optimized manufacturing processes and strong sourcing networks, Dedicated Impex Co. offers globally competitive pricing without compromising on precision, durability, or quality standards.
  • Dedicated Impex provide OEM export services including logo marking, customized pitch combinations, and private-label packaging. This helps international partners market high-quality Screw Pitch Gauges under their own brand identity.

Product FAQ's

1. What is a Pitch Gauge?

A Pitch Gauge, also known as a Thread Pitch Gauge or Screw Pitch Gauge, is a precision measuring tool used to determine the pitch of screw threads. It consists of multiple serrated blades designed to match specific thread profiles for accurate identification.

2. What is the purpose of a Thread Pitch Gauge?

A Thread Pitch Gauge is used to identify the distance between threads in metric (mm) or the number of threads per inch (TPI) in imperial systems. It helps technicians verify thread standards during manufacturing, inspection, and maintenance operations.

3. Can a Pitch Gauge measure both internal and external threads?

Yes, a Pitch Gauge can be used for checking both internal and external thread pitches. The appropriate blade is matched against the thread profile to ensure accurate pitch identification without the need for complex measuring equipment.

4. What thread standards are available in Screw Pitch Gauges?

Screw Pitch Gauges are available in various standards including Metric (ISO), Unified (UNC/UNF), Whitworth (BSW/BSF), BSP, and ACME. These variations allow compatibility with different international thread systems used across industries.

5. What is the measuring range of a typical Pitch Gauge?

Metric Pitch Gauges commonly range from 0.25 mm to 3.0 mm pitch, while imperial versions typically range from 4 TPI to 36 TPI. The range depends on the specific gauge set and application requirements.

6. What material is used to manufacture Thread Pitch Gauges?

Thread Pitch Gauges are generally manufactured from hardened and tempered alloy steel to ensure high durability, wear resistance, and dimensional stability. The hardened blades maintain accuracy even after repeated industrial use.

7. How accurate is a Screw Pitch Gauge?

A Screw Pitch Gauge provides highly reliable pitch identification when matched correctly with the thread profile. Although it does not provide dimensional measurements like micrometers, it ensures precise pitch verification as per international standards.

8. Is a Pitch Gauge suitable for industrial applications?

Yes, Pitch Gauges are widely used in automotive, aerospace, general engineering, tool rooms, and maintenance workshops. Their simple design and accurate blade profiles make them ideal for routine inspection and quality control processes.

9. Why choose Dedicated Impex Co. for Pitch Gauges?

Dedicated Impex Co. is a trusted supplier and exporter of high-quality Pitch Gauges manufactured under strict quality control standards. We ensure durable construction, accurate profiling, competitive pricing, and reliable worldwide export support for industrial clients.

10. Are Pitch Gauges available in customized sets?

Yes, Pitch Gauges can be customized based on required pitch combinations, specific thread standards, blade quantities, and OEM branding requirements. Dedicated Impex Co. specializes in manufacturing customized Thread Pitch Gauges and Screw Pitch Gauges tailored to specific industrial applications, export specifications, and private-label distribution needs, ensuring precision, quality consistency, and reliable global supply support.
